Cage Aspiration Filter 20 mmProtects your pump from undesired chunks in your wort, must, juice,… Made of food grade plastic. Easy to mount thanks to the tube connection.Inner diameter hose piece: 18 mmOutside diameter of hose piece: 20 mmOutside diameter filter housing: 40 mmTotal height: 95 mm
Cage Aspiration Filter: 30 mm
Inner diameter hose piece: 23 mm
Outside diameter of hose piece: 30 mm
Outside diameter filter housing: 122 mm
Total height: 118 mm
Cage Aspiration Filter: 25 mm
Inner diameter hose piece: 25 mm
Outside diameter of hose piece: 25 mm
Outside diameter filter housing: 36 mm
Total height: 95 mm
Put the pump after the plate chiller if used for pumping chilled wort.
Power: 10 W - 240 V
Inlet/outlet: 1/2" male thread
Capacity: 9-15 L/min
Head: 1,5-2 m
Max. temperature: 90 °C
3 year warranty
Supplied without a power plug!
Cage Aspiration Filter: 50 mm
Inner diameter hose piece: 43 mm
Outside diameter of hose piece: 50 mm
Outside diameter filter housing: 155 mm
Total height: 150 mm
Cage Aspiration Filter: 35 mm
Inner diameter hose piece: 28 mm
Outside diameter of hose piece: 35 mm
Outside diameter filter housing: 150 mm
Total height: 145 mm
Electropump for liquids NOVAX 20 BCapacity: 1700 l/hourSelf priming liquid ring pump with electromotorWithout bypassCan pump in both directions Suitable for alimentary liquids, such as water, wine, wort, milk and vinegarWith standard VITON sealPower 340 W/0,5 pk (2850 RPM)Hose barb: 20 mmMaximum head: 20 metresPower supply: 230 V/50 HzMaximum temperature: 95°CDon't let the pump run dry.
Cage Aspiration Filter: 40 mm
Inner diameter hose piece: 33 mm
Outside diameter of hose piece: 40 mm
Outside diameter filter housing: 150 mm
Total height: 150 mm
Easily transfers large amounts of liquid through the connection with the head of a drill. Suitable for wine or beer.Hose barb 14 mmMaximum speed: 2850 rpm => 1400 l/hourDon't let the pump run dry.
This is a classic self priming lateral liquid ring pump with starry impeller. This particular type of hidraulics provides the pump with an extraordinary self priming capacity, also in absence of a continuous flowing of the liquids in suction ( presence of air or other gases ). It is particulary made for the transfer of liquids such as WINE, MUST, SALTY AND SOFT WATER, MILK, OIL, GASOIL, whose viscosity is not over 30 degrees CENTISTOKES or over 4 degrees ENGLER. The fluids to be conveied are to be neutral and clean or contain in suspansion only a small percentage of solids ( 0.2-0.5% max). They are to have a hardnes and granulation which prevent the damage of the inside pump surface. Yet a narrow mesh filter can be mounted on the suction piping.
To be drived with a 2500 rpm drill.
Technical specifications:
Code: 290000
Model: DRILL 14
L / h: 1400
øD mm: 14
Hmax (m): 24
r.p.m.: 2850
LxWxH: 70X100H120
kg: 1.5
Pump with electric motor NOVAX 20 MFlowrate: 1700 l/hLiquid ring pump, self-priming with electromotorWithout bypassPump operable in 2 directions. Suitable for pumping clear or lightly charged food liquids, such as water, wine, wort, etc.With NBR axial sealPower supply: 230 V, 50 Hz.Max head: 25 mConnection: 20 mmPower: 340 W | 0,5 hp, 2850 rpmMaximum temperature: 35°CDon't let the pump run dry.
Pump with electric motor NOVAX 30 M
Flowrate: 5000 l/hLiquid ring pump, self-priming with electromotorWithout bypassPump operable in 2 directions. Suitable for pumping clear or lightly charged food liquids, such as water, wine, wort, etc.With NBR axial sealPower supply: 230 V, 50 Hz.Max head: 15 mConnection: 30 mmPower: 650 W | 1 hp, 1450 rpmMaximum temperature: 35°CDon't let the pump run dry.
Electropump for liquids NOVAX 25 MCapacity: 2400 l/hourSelf priming liquid ring pump with electromotorWithout bypassCan pump in both directions Suitable for alimentary liquids, such as water, wine, wort, milk and vinegarWith standard NBR sealPower 420 W/0,6 pk (1450 RPM)Maximum head: 12 metresPower supply: 230 V/50 HzMaximum temperature: 35°CDon't let the pump run dry.

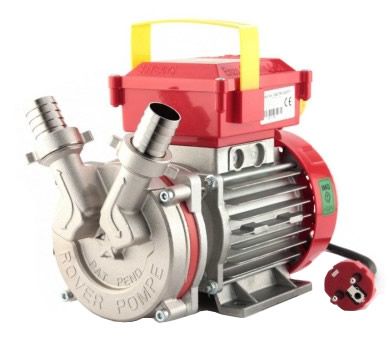

Very favourably priced liquid ring pump with an electric motor. Pump housing with stainless steel shaft. Without bypass, pump operable in 2 directions. Special model with heavier engine for pumping clear or lightly charged oils. Also suitable for pumping clear or lightly charged food liquids, such as water, wine, wort, etc.
With standard NBR seal for liquids up to 60 °C.
VITON sealing available separately.
Motor: 230 V, 50 Hz.
Flowrate: 2500 l/h
Connection: 25 mm
Motor: 0.9 hp, 1450 rpm
Head: 12 m
The pump cannot be used for aggressive detergents like caustic soda, hydrogen peroxide, ... Do not run the pump dry. Begin with priming the pump by pouring oil, then the pump becomes self-priming.
Great Value basket filter with electropump, especially intended for pre-filtration of liquid foods such as must, fruit juices, low alcohol herbal extracts etc. Convenient compact design with handle.
Spacious stainless steel basket sieve with fineness 200 μ.
Pump with stainless steel housing (without bypass).
Suitable for filtering slightly hazy foods (liquids such as wine, beer, juice or water).
With standard NBR seal for liquids up to max. 60 ° C.
Hose connection to pump: 25mm
Hose connection to basket filter: 30 mm
Engine: 0.6hp, 230volt, 50Hz, 1450 rpm
Capacity: up to 5000 l / hour
Cage Aspiration Filter: 16 mm
Inner diameter hose piece: 11 mm
Outside diameter of hose piece: 16 mm
Outside diameter filter housing: 39 mm
Total height: 95 mm
