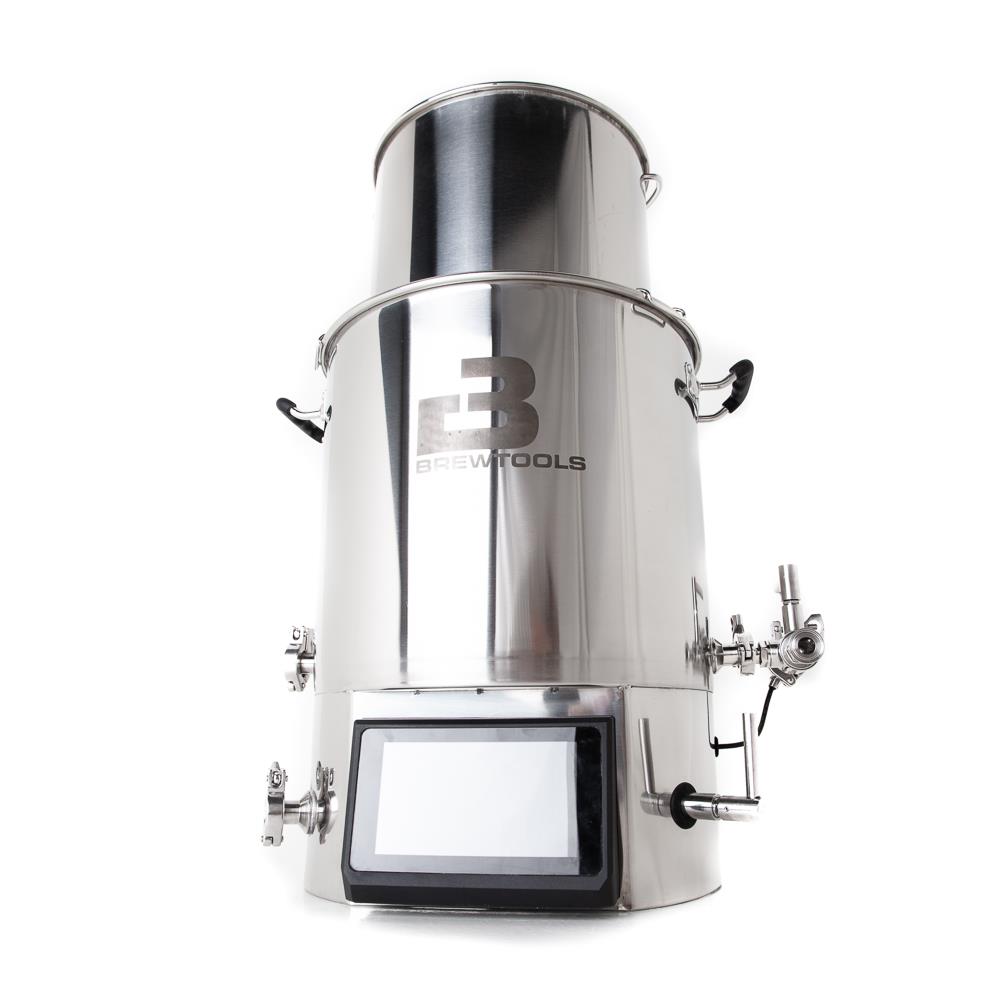

Brewtools B40pro Brewing System (EU)
€1,814.00*
Available, delivery time: 3-4 weeks
We have resumed shipping orders. Please note that as we continue to finalize our relocation, we are managing a backlog of orders as well as receiving goods at our new facilities. We will prioritize the fulfillment of the earliest orders and will notify you as soon as your order has been shipped. Thank you for your continued patience and understanding during this transition.
Few Available
Total:
*
Product number:
5016830
Manufacturer:
Brewtools
Product information "Brewtools B40pro Brewing System (EU)"
- Tank volume of 46 liters (12 gallons) and malt capacity of 9kg (20 lbs).
- Pre-boil volume of 20-40 liters (5-11 gallons) for flexibility.
- Rapid heating and boiling with 3.2kW heating power.
- Enhanced accuracy with 2 digital sensors.

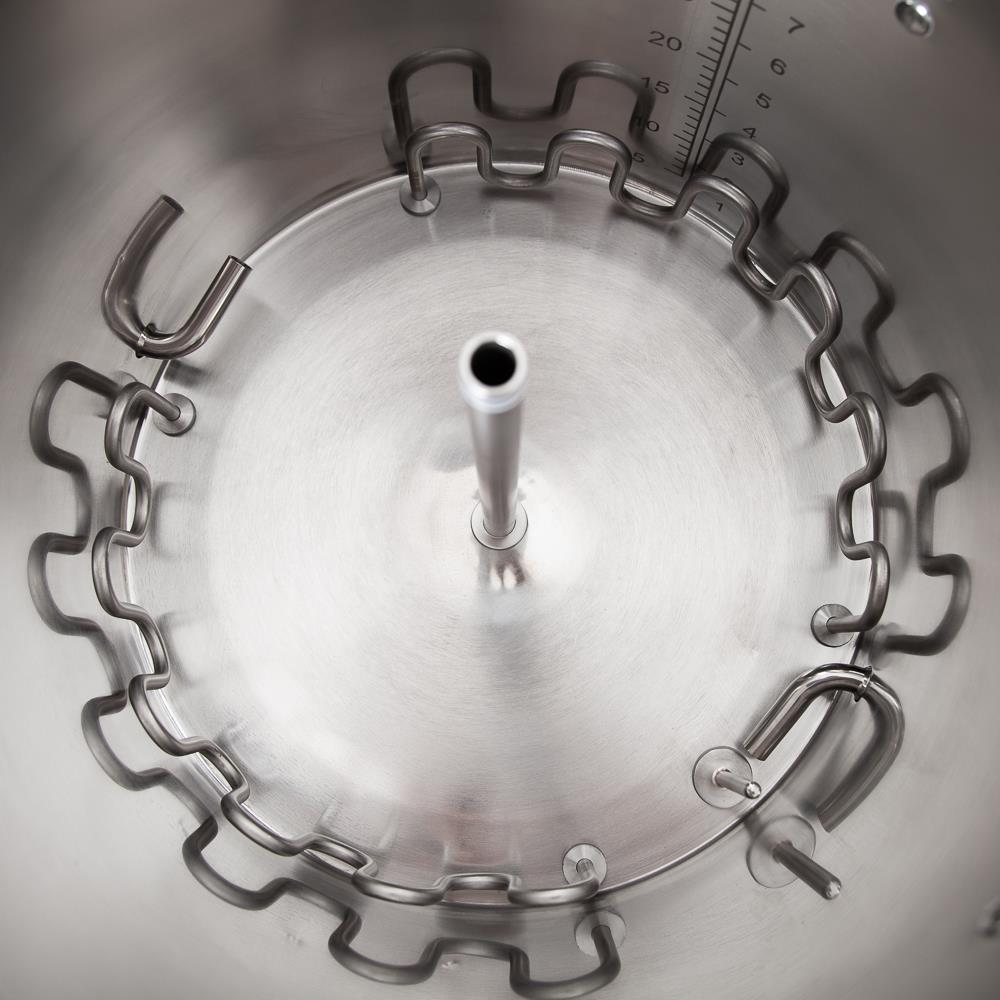

- Conical bottom with center draining for quick and effortless cleaning.
- Advanced control system with a 7" touch-screen, WiFi, and Bluetooth 4.2.
The B40pro boasts a boil capacity of 40 liters (10 gallons) and approximately 9kg (20 lbs) malt capacity. It comes equipped with a robust pump controllable from the touch-screen. Wort circulates up through the center-pipe, and the pump attaches using Tri-Clamps, making removal easy even when the tank is full.
The malt pipe features latches that unfold when lifted, allowing you to use both hands for lifting.
Sparging is tube and pipe-free outside the tank. A sparge tube, positioned on the exterior of the centerpipe, follows the malt pipe when lifted, along with lifting the wort spreading device. This simplifies sparging from a separate tank without creating a mess.
Post-B40pro brewing, there's no need to turn it upside down for cleaning. The centerpipe detaches effortlessly, enabling easy unit cleaning, with all trub draining directly into a bucket or drains. Utilize the included circulation device as a CIP solution to save time and cleaning chemicals.
The system features two digital temperature sensors—one at the tank bottom and another before the pump. The maximum static offset is ±0.5°C. Sensors can be individually calibrated for maximum accuracy, boasting an accuracy of 0.1°C. You can also connect a third sensor (accessory) to monitor the wort temperature returning from the counterflow cooler, allowing you to pump directly to the fermenter when the temperature is optimal.
With powerful heating elements providing over 3.2kW (230V) of power, water or wort heating is exceptionally fast. During the boil, the PID system deactivates, letting you adjust the power output for the perfect rolling boil. You can also adjust the maximum current of each mains input to 10, 13, 15, and 16 Amps, ensuring you never blow a fuse.
All ports are 34mm Tri-Clamp fittings for maximum flexibility without leaks. The system is shipped with one 3-way valve as standard. All silicone tubes are 16x25mm food-grade silicone.
The custom-developed control system features high-quality electronics and receives regular software updates with new features, facilitated via WiFi.
Specifications:
- Dimensions excl. packaging: 58 (h) x 52 (w) x 52 (d) cm
- Dimensions with one side valve: 58 (h) x 62 (w) x 52 (d) cm
- Dimensions with two valves: 58 (h) x 72 (w) x 52 (d) cm
- Packaging dimensions: 70 (h) x 55 (w) x 55 (d) cm
- Weight excl. packaging: 20 kg Weight incl. packaging: 24.5 kg
- Tank dimensions: Ø40 cm, height 36 cm
- Tank volume: 46 liters (rec maximum boil volume – 40 liter)
- Malt pipe dimensions: Ø32 cm, height 32 cm
- Malt pipe volume: 25.7 l
- Max recommended grain quantity: 9 kg
- Minimum liquid volume: 15 l
- Build material: 1.0 mm stainless steel (SS304)
- Heating elements: 230V, 3200W (2x1600W)
- Pump: 24VDC brushless, max 25 l/min, max head 4.5 m, stainless steel head, stepless speed control from touch display Controller: ARM Cortex M4 180mhz, 7" Touch display
- Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2, MicroSD
- Hoses: 16x25mm silicone, food grade
What's included:
- Complete brewing system with controller, pump, tank sensor, heaters and lid
- Malt pipe with handle and latches

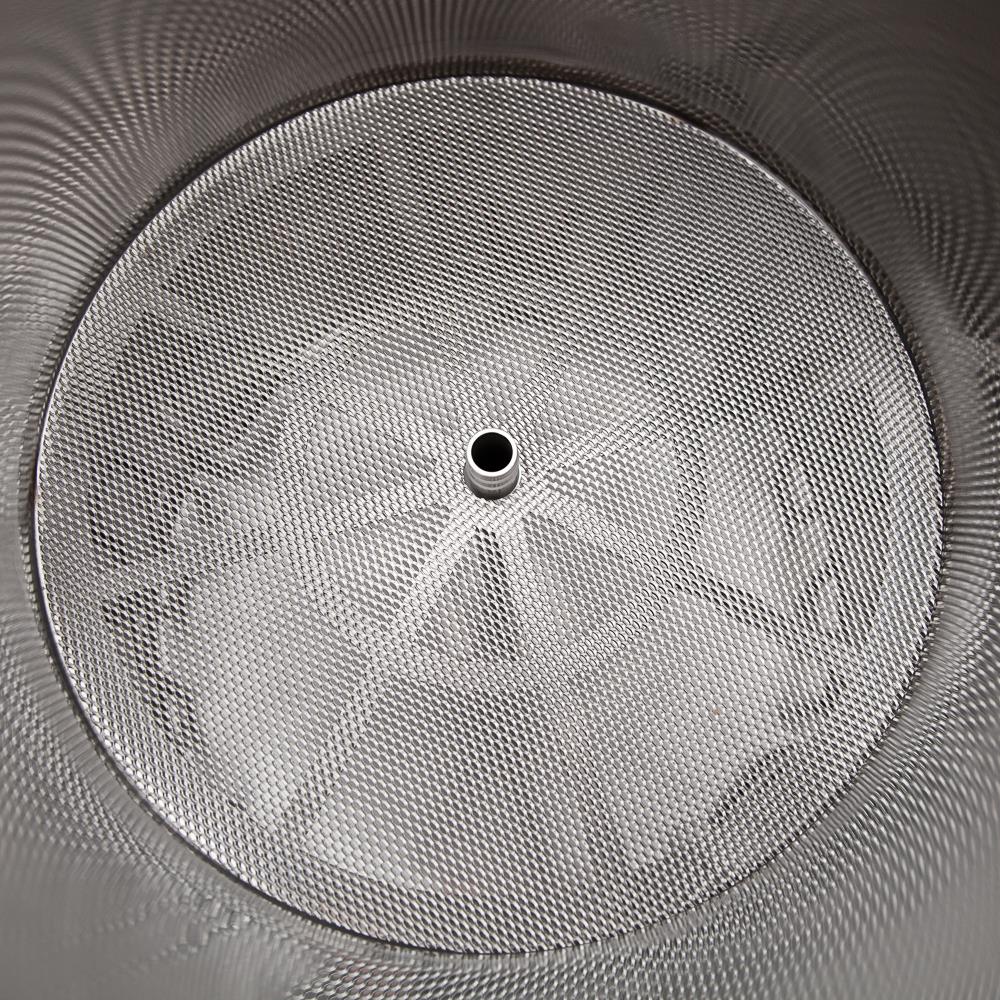

- 1 pcs expanded metal filter
- 1 pcs 3-way valve Temperature sensor with adapter for pump line
- 5 pcs 34mm Tri Clamps with gaskets (all used for standard setup)
- 3 pcs 34mm TC blind caps 1 pcs dip tube, short type
- 1 pcs mash hat for spreading the wort
- 1 pcs sparge tube 150cm 16x25mm silicone tube
- 1 pcs 34mm TC to 19mm hose barb adapter
- O-rings for the center pipe and dip tube
- 1 pcs Power Cable, 2 meter
Login
Brewtools Steam Hat B40pro
€192.93*
The Brewtools professional steam hats are crafted for optimal versatility.They come equipped with a silicone edge seal, 4 clamps to secure it onto your brewing system, a 110mm inspection hole allowing you to add hops during boiling, 2 handles covered in silicone, and a 4-inch accessory mount on top. The silicone plug for the inspection hole is included.Don't forget to order a clamp and gasket for the top port.
few Available
Brewtools Sparge Manifold, S
€66.55*
Sparge manifold for easy distribution of sparge water compatible B40Designed to fit the upper section of the center pipe and sparge pipe, it moves along as the malt pipe is lifted.Included:ManifoldUpper silicone lidSilicone end caps for the pipes
few Available

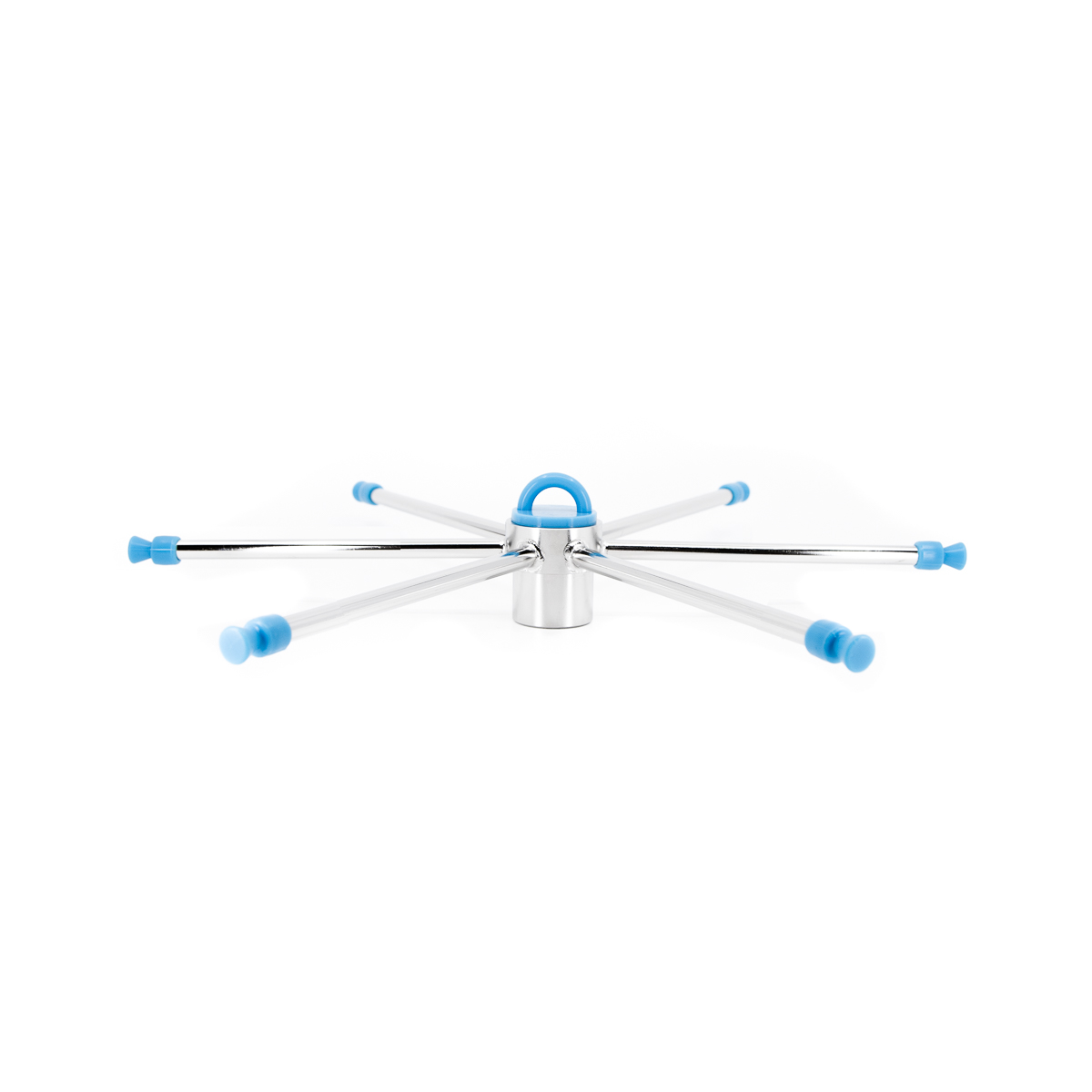

Brewtools Circulation Manifold S
€156.09*
Circulation Manifold for mashing and sparging for the B40proSecured around the center malt pipe and adjustable to be positioned at the grain bed's top. Included: Circulation manifold Sparge adapter with 12mm hose barb Core made of silicone Silicone tube measuring 10x16mm, 1 meter
few Available
Brewtools Trubinator™ S
€83.49*
The Trubinator is designed for use in your brewing system or boil kettle.As you whirlpool, hops and other particles accumulate in the center of the filter, enabling the pump to transfer cleaner wort to your fermenter. A single wingnut and bolt secure the filter, making it easy to dismantle for cleaning. Diameter: 320mm Height: 90mm Standard filter: R2x5
few Available
Brewtools Steam Condenser
€325.49*
The Brewtools steam condenser fits on top of the steam hood and cools the steam with cold water until it becomes a liquid that flows out of the condenser into a bucket or directly into the drain. It is an excellent alternative to a ventilation system. This device is supplied with a nozzle that delivers 1.1 liters of water per minute at 4 bar pressure. Included in the packaging: - TC 4" to TC 2" adapter (1 piece) - 20cm straight TC 2" pipe (2 pieces) - TC 2" T-piece (1 piece) - TC 2" elbow (1 piece) - TC 2" 1/8" nozzle adapter with TC34mm inlet (1 piece) - TC 2" to 19mm hose nozzle adapter (1 piece) - TC 2" clamp (6 pieces) - TC 2" gasket (6 pieces) - 1/8" BSP-T nozzle, 30 degrees, 1.1 liters per minute at 4 bar (1 piece) You will also need - Steam hood for your system - TC 4" clamp and seal - Water inlet adapter (TC34mm to hose or garden plug etc.) - Outlet pipe (16x25mm) - A TC34mm elbow is recommended for the water inlet.
few Available

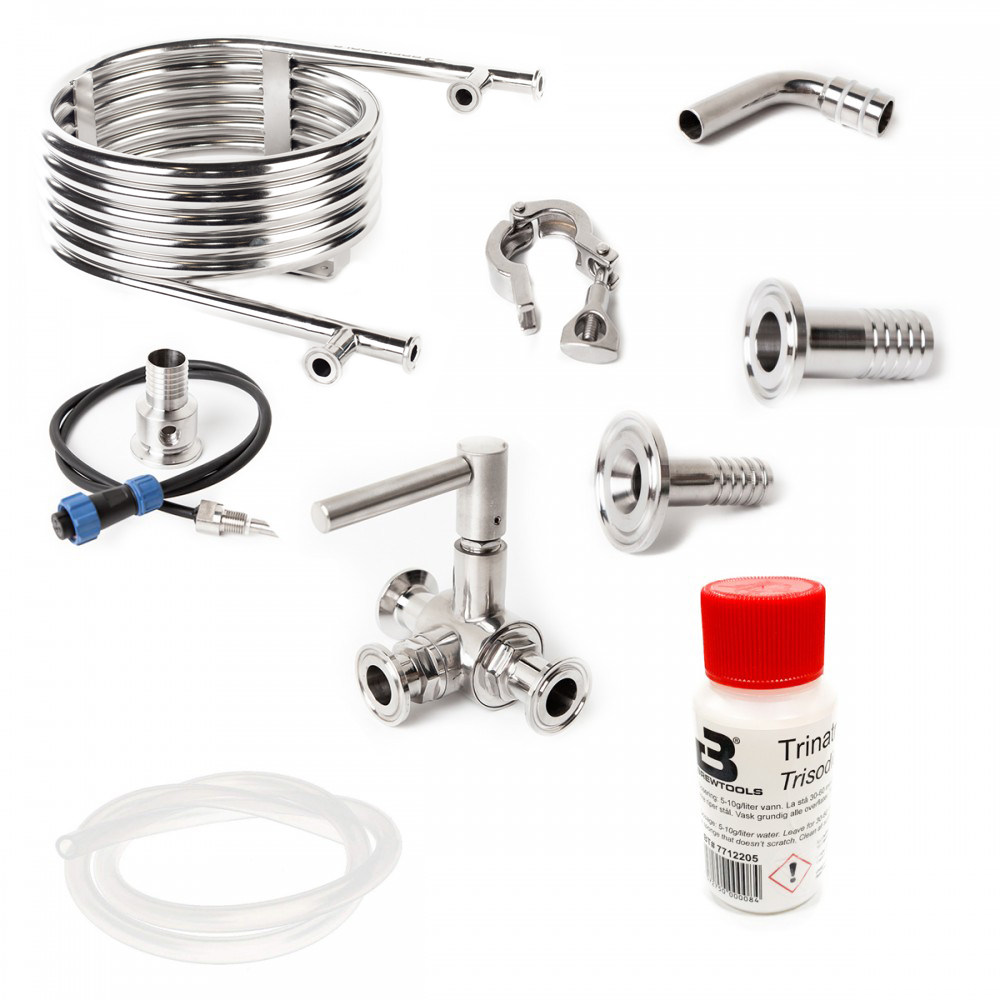

Brewtools accesory starterpack 2 valve setup
€664.29*
This is the recommended accessories to get you started using the Brewtools pro systems.The bundle comes with the effective counterflow cooler, an additional 3-way valve that allows you to decide whether to circulate the cooled wort back into the tank to create a whirlpool or pump it directly to the fermenter.A third sensor provides precise measurements of the returning cooled wort. All the required fittings and accessories are also part of the package.Included in the package: 1 pcs 3-way ball valve, TC34mm DN15 1 pcs Dip tube, short 1 pcs Counterflow Cooler, Pro 1 pcs O-ring, Viton, 18x14x2mm 5-pack 3 meter Silicone Tube 16x25mm, clear2 pcs TC Gasket, 34mm, DN15, 5-pack2 pcs TC34mm to 12mm hose barb 1 pcs TC34mm to 19mm hose barb, sensor holder4 pcs TC34mm to 19mm hose barb1 pcs Temp. Sensor, inline, M106 pcs Tri Clamp, 34mm1 pcs TSP, 100g
Not Available

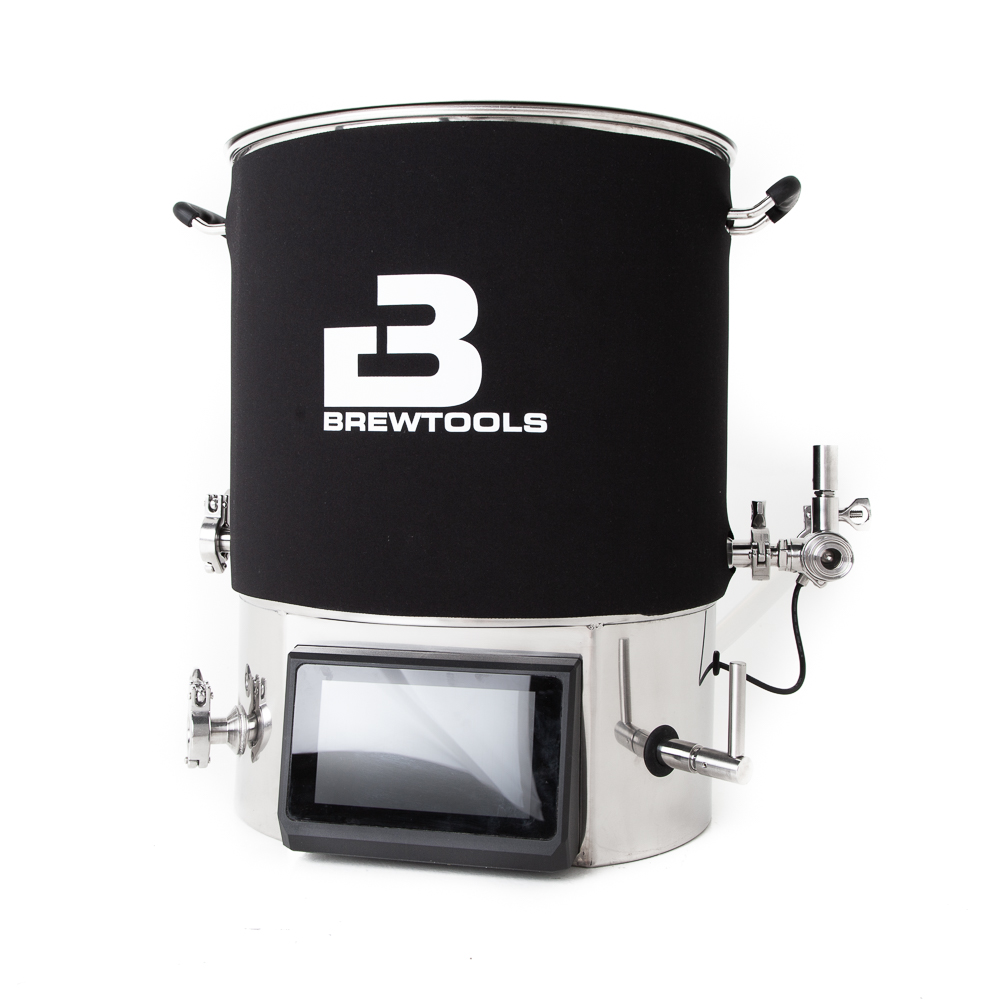

Brewtools Insulation Jacket B40pro
