Brewtools B80pro Brewing System (EU)

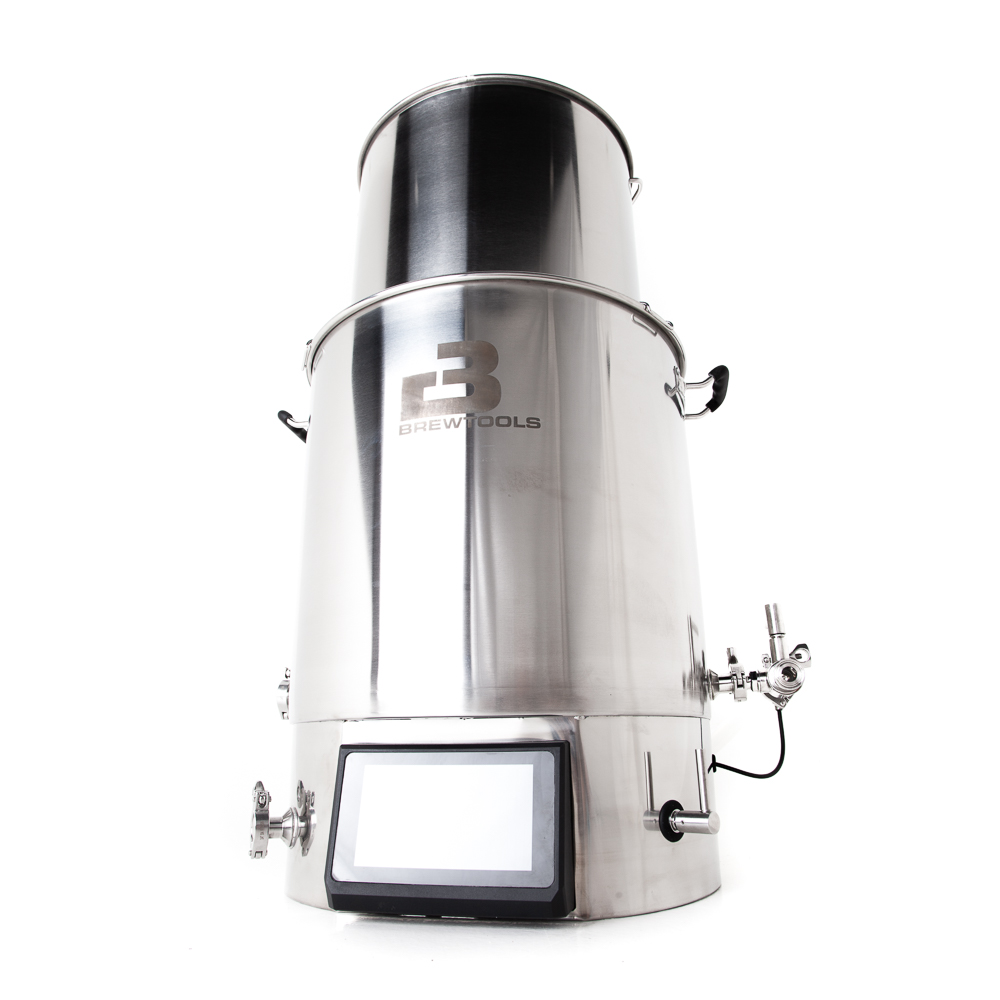

Tank volume of 46 liters (12 gallons) and malt capacity of 9kg (20 lbs). Pre-boil volume of 20-40 liters (5-11 gallons) for flexibility. Rapid heating and boiling with 3.2kW heating power. Enhanced accuracy with 2 digital sensors. Conical bottom with center draining for quick and effortless cleaning.Advanced control system with a 7" touch-screen, WiFi, and Bluetooth 4.2. The B40pro boasts a boil capacity of 40 liters (10 gallons) and approximately 9kg (20 lbs) malt capacity. It comes equipped with a robust pump controllable from the touch-screen. Wort circulates up through the center-pipe, and the pump attaches using Tri-Clamps, making removal easy even when the tank is full. The malt pipe features latches that unfold when lifted, allowing you to use both hands for lifting. Sparging is tube and pipe-free outside the tank. A sparge tube, positioned on the exterior of the centerpipe, follows the malt pipe when lifted, along with lifting the wort spreading device. This simplifies sparging from a separate tank without creating a mess. Post-B40pro brewing, there's no need to turn it upside down for cleaning. The centerpipe detaches effortlessly, enabling easy unit cleaning, with all trub draining directly into a bucket or drains. Utilize the included circulation device as a CIP solution to save time and cleaning chemicals. The system features two digital temperature sensors—one at the tank bottom and another before the pump. The maximum static offset is ±0.5°C. Sensors can be individually calibrated for maximum accuracy, boasting an accuracy of 0.1°C. You can also connect a third sensor (accessory) to monitor the wort temperature returning from the counterflow cooler, allowing you to pump directly to the fermenter when the temperature is optimal.With powerful heating elements providing over 3.2kW (230V) of power, water or wort heating is exceptionally fast. During the boil, the PID system deactivates, letting you adjust the power output for the perfect rolling boil. You can also adjust the maximum current of each mains input to 10, 13, 15, and 16 Amps, ensuring you never blow a fuse.All ports are 34mm Tri-Clamp fittings for maximum flexibility without leaks. The system is shipped with one 3-way valve as standard. All silicone tubes are 16x25mm food-grade silicone. The custom-developed control system features high-quality electronics and receives regular software updates with new features, facilitated via WiFi. Specifications: Dimensions excl. packaging: 58 (h) x 52 (w) x 52 (d) cm Dimensions with one side valve: 58 (h) x 62 (w) x 52 (d) cm Dimensions with two valves: 58 (h) x 72 (w) x 52 (d) cm Packaging dimensions: 70 (h) x 55 (w) x 55 (d) cm Weight excl. packaging: 20 kg Weight incl. packaging: 24.5 kg Tank dimensions: Ø40 cm, height 36 cm Tank volume: 46 liters (rec maximum boil volume – 40 liter)Malt pipe dimensions: Ø32 cm, height 32 cm Malt pipe volume: 25.7 l Max recommended grain quantity: 9 kg Minimum liquid volume: 15 l Build material: 1.0 mm stainless steel (SS304) Heating elements: 230V, 3200W (2x1600W) Pump: 24VDC brushless, max 25 l/min, max head 4.5 m, stainless steel head, stepless speed control from touch display Controller: ARM Cortex M4 180mhz, 7" Touch display Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2, MicroSD Hoses: 16x25mm silicone, food grade What's included: Complete brewing system with controller, pump, tank sensor, heaters and lid Malt pipe with handle and latches 1 pcs expanded metal filter 1 pcs 3-way valve Temperature sensor with adapter for pump line 5 pcs 34mm Tri Clamps with gaskets (all used for standard setup) 3 pcs 34mm TC blind caps 1 pcs dip tube, short type 1 pcs mash hat for spreading the wort 1 pcs sparge tube 150cm 16x25mm silicone tube 1 pcs 34mm TC to 19mm hose barb adapter O-rings for the center pipe and dip tube 1 pcs Power Cable, 2 meter

Main featuresTank capacity of 150 litres (40 gallons) and malt capacity of 35 kg (77 lbs). 6 kW heating power (2x3 kW) using two main connections for fast heating and boiling. High accuracy with 2 digital sensors. Conical base with central drain for quick and easy cleaning. Robust control system with a 7-inch touchscreen, Wifi and Bluetooth 4.2. The B150pro is equipped with a powerful pump that can be conveniently controlled via the touchscreen. The wort circulates through the central pipe and the pump is attached with tri-clamps, allowing easy removal even when the tank is full. The malt pipe is fitted with latches that fold out when lifted, so you can use both hands to lift. The sparging takes place without hoses or pipes outside the tank. A sparging tube, which is installed outside the central tube, follows the malt tube during lifting and lifts the wort splitter at the same time. Cleaning with the B150 pro is efficient and uncomplicated. The central pipe can be easily removed, making it easier to clean the unit, and all the trub is drained directly into a bucket or the drains. Use the circulation pump as a CIP solution to save time and detergent. The system has two digital temperature sensors - one at the bottom of the tank and one in front of the pump. The maximum static offset is ±0.5°C. The sensors can be individually calibrated to ensure maximum accuracy and have an accuracy of 0.1°C. It is also possible to connect a third sensor (accessory) to monitor the temperature of the wort returning from the counterflow chiller, allowing you to pump directly into the fermentation tank when the temperature is correct. All connections are equipped with 34 mm Tri-Clamp fittings for maximum flexibility without leaks. The system is supplied with a 3-way valve as standard. All silicone hoses are made of 16x25 mm food grade silicone. The customised control system has high-quality electronics and the software is constantly being improved with new functions. It is updated via WiFi. Technical data: Dimensions without packaging: 79 (H) x 72 (W) x 72 (D) cm Dimensions with one side valve: 79 (H) x 82 (W) x 72 (D) cm Dimensions with two valves: 79 (H) x 92 (W) x 72 (D) cm Packaging dimensions: 97 (H) x 62 (W) x 72 (D) cm Weight without packaging: 37.5 kg Weight incl. packaging: 45 kg Tank dimensions: Ø60 cm, height 60 cm Tank volume: 169 litres (recommended maximum boiling volume - 150 litres) Malt pipe dimensions: Ø50 cm, height 55 cm Malt pipe volume: 108 litres Maximum recommended grain quantity: 35kg Minimum liquid volume: 35 litres Material: 1.0/1.2 mm stainless steel (SS304) Heating elements: 230V, 6000W (2x3000W) (two separate circuits) Pump: 24VDC brushless, max. 25 l/min, max. delivery head 4.5 m, stainless steel head, infinitely variable speed control via touch display Controller: ARM Cortex M4 180 MHz, 7" touch display Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2, MicroSD Tubing: 16x25mm silicone, food grade tubing Included in the box:Complete brewing system with control unit, pump, tank sensor, heaters and lid Malt pipe with handle and bars 1 extended metal filter 1 x 3-way valve temperature sensor with adapter for the pump line 5 x 34mm Tri-Clamps with gaskets (all used for the standard configuration) 3 x 34mm TC blind caps 1 immersion tube, short type 1 mash cap for wort distribution 1 lauter tube 150 cm 16x25mm Silicone hose 1 x 34mm TC to 19mm hose nozzle adapter O-rings for the central tube and the dip tube 2 mains cables, 2 metres
