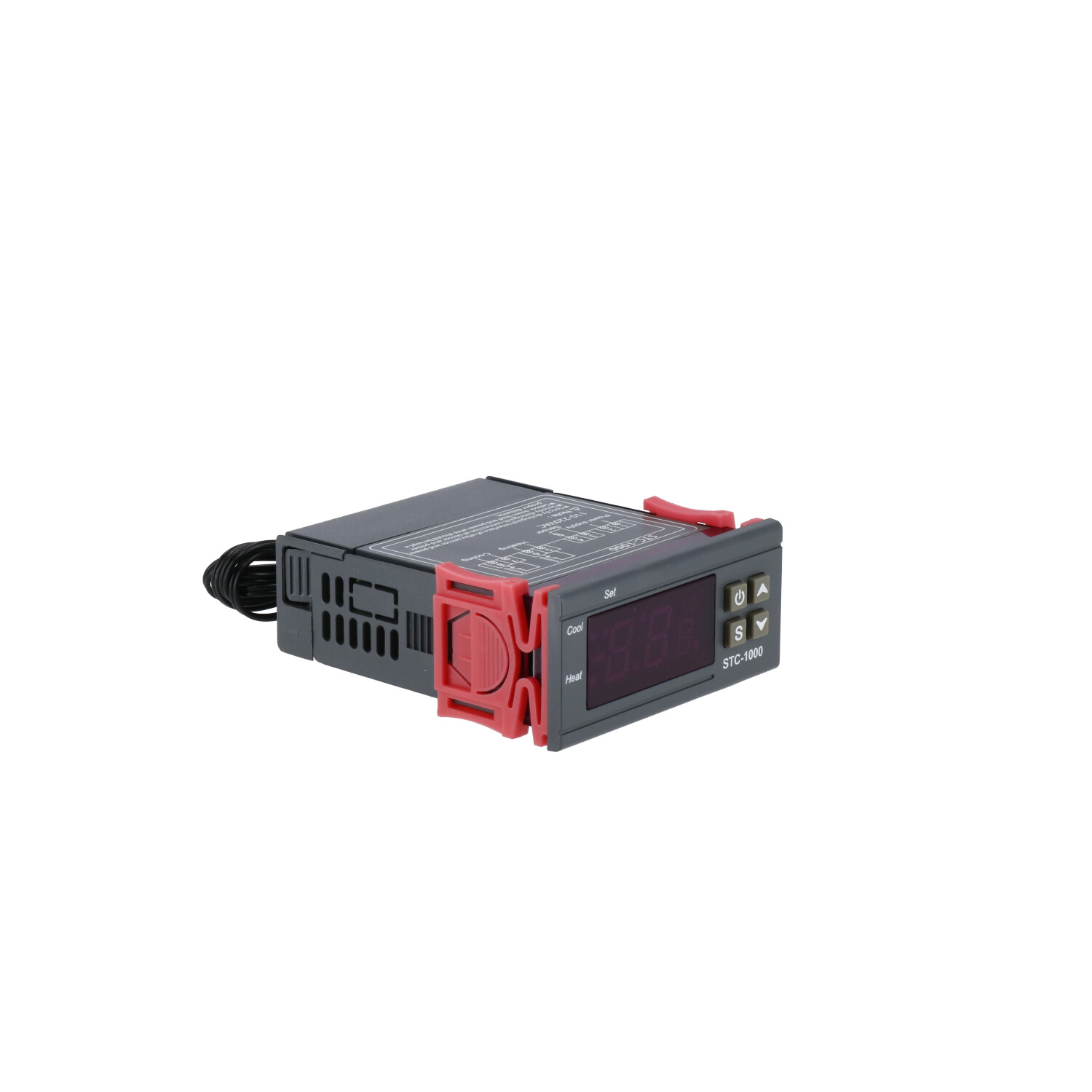

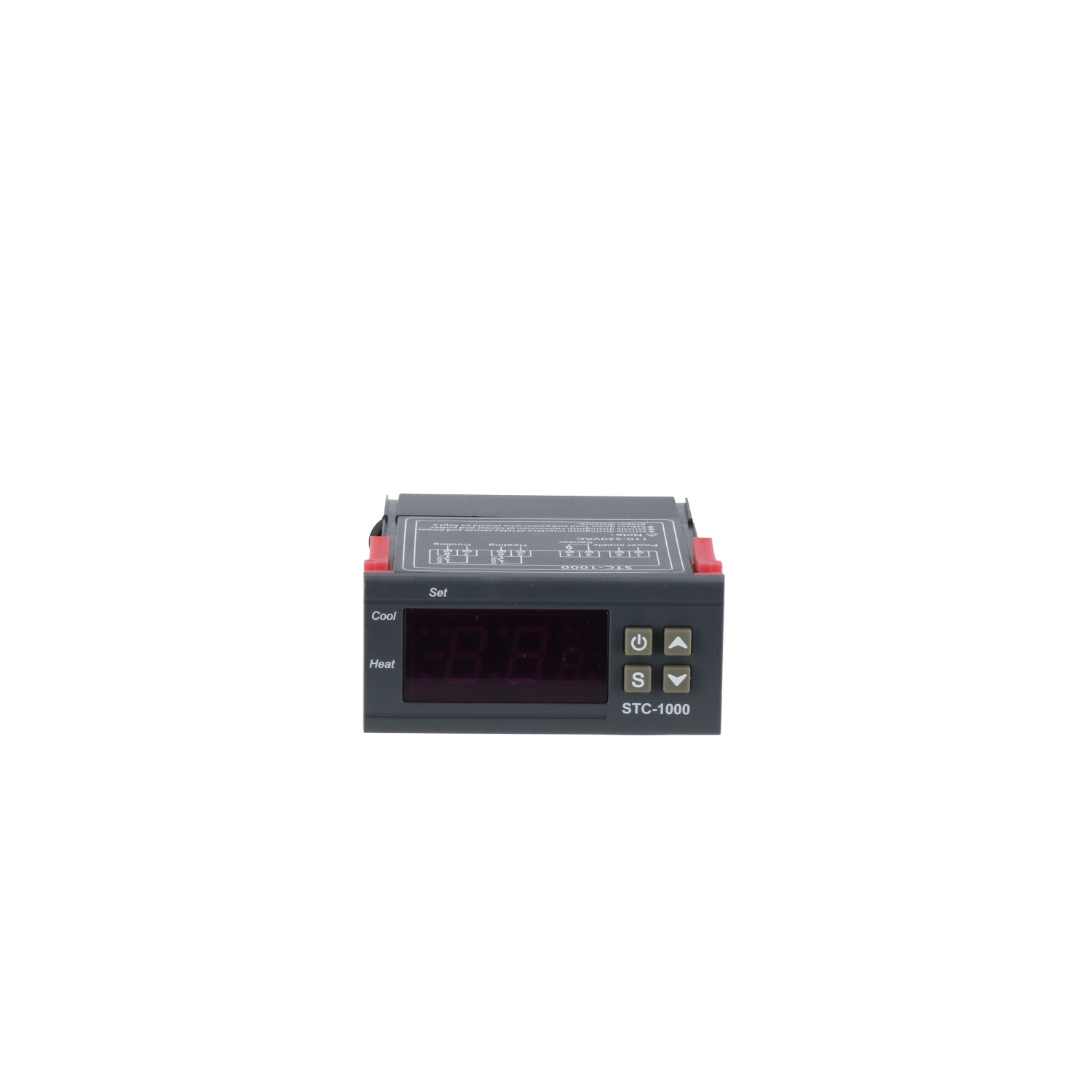

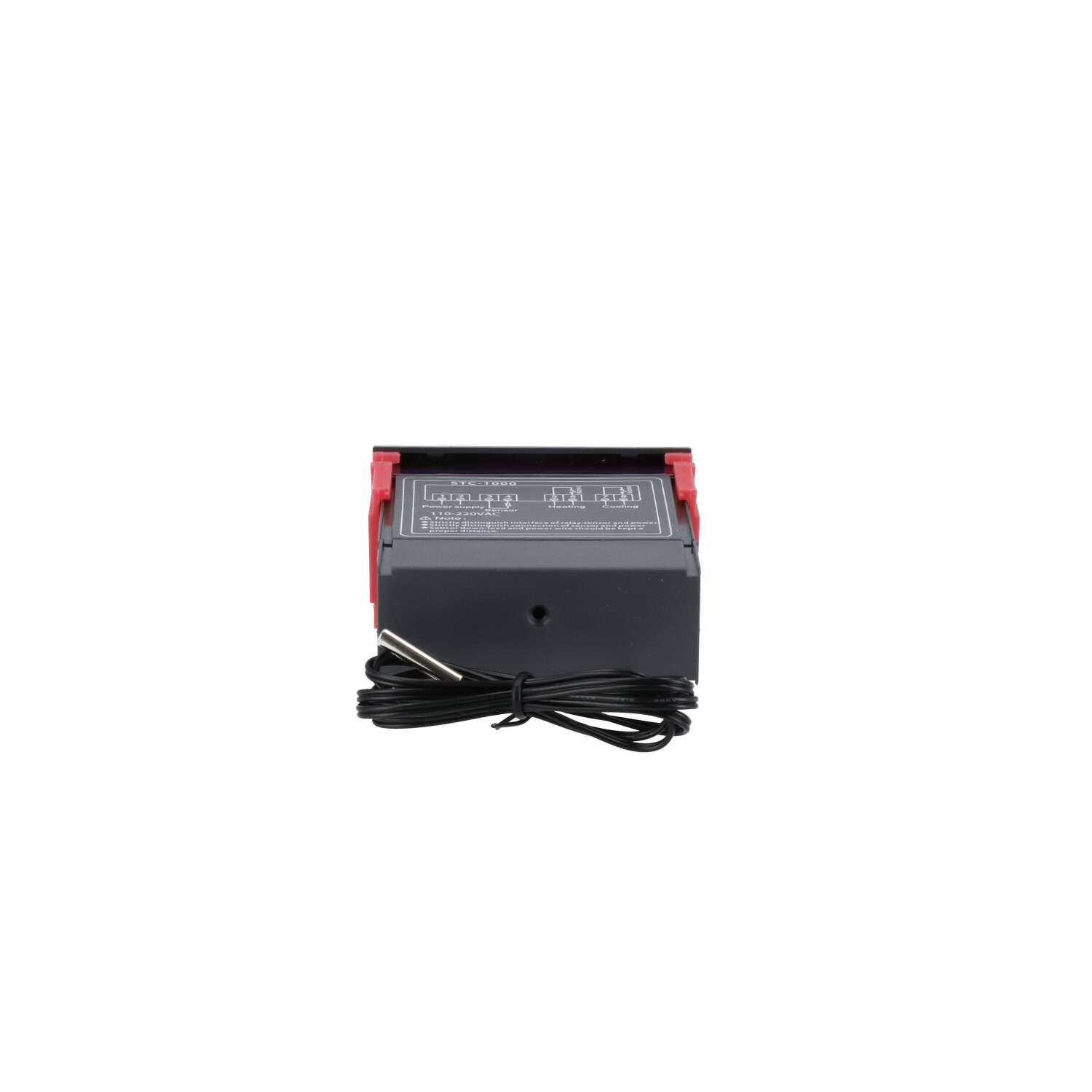

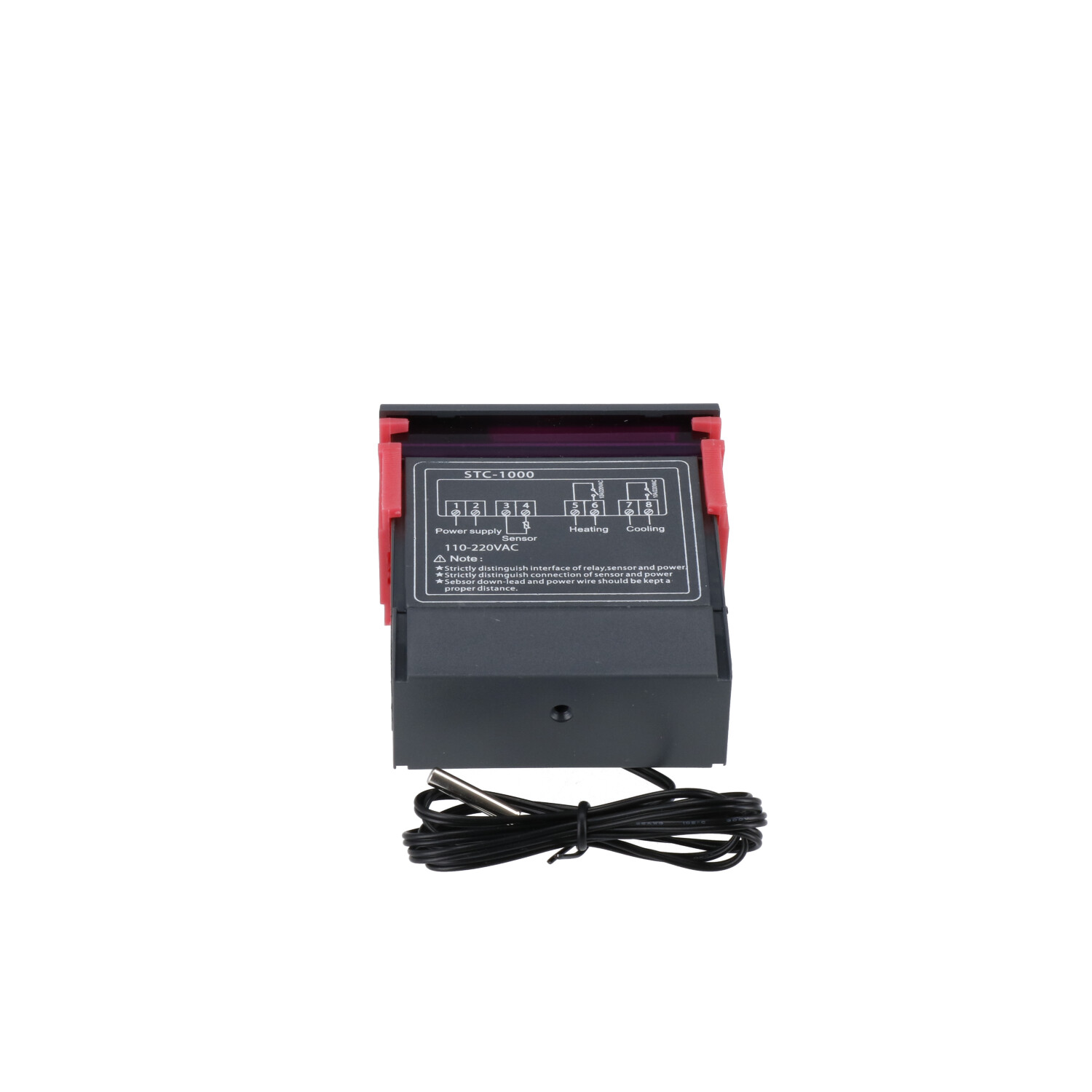

STC-1000 Temperature Controller
Product number:
5016500
Product information "STC-1000 Temperature Controller"
All-Purpose Digital Temperature Controller Fahrenheit &Centigrade Thermostat w Sensor Cooling/Heating
Mounting dimension:
- Front Panel Size: 75(L)*34.5(W)mm Mounting Size: 71(L)*29(W)mm
- Product Size：75(L)*34.5(W)*85(D)mm Sensor Length: 2m (include the probe)
Technical Parameters:
- Output: 2 Relays
- Temperature Measuring Range: -50～210 °F / -50°C - 99°C
- Resolution: 0.1 °F / 0.1 °C
- Accuracy: ±1 °F（-50 °F -160 °F）/ ±1° C（-50°C -70°C）
- Power Supply: 230VAC 50Hz/60Hz
- Power Consumption: 3W
- Sensor: NTC Sensor
- Relay Contact Capacity: Cooling (10A/250VAC)/ Heating (10A/250VAC);
- Ambient Temperature: 0 °C-60 °C
- Storage Temperature: -30 °C-75 °C
- Relative Humidity: 20-85% (No Condensate)
Package Content:
- 1x ITC-1000 Temperature controller 230v with 6.67 NTC Sensor
