Cannular Compact Canning Machine

Your own canned beer is within easy reach thanks to this easy-to-use can seamer!

Canned beer has some important advantages as opposed to bottling: less risk of oxidation and 100% protected from light, so no lightstruck off-flavour due to UV rays penetrating the beer. What's more, cans offer endless possibilities for personalisation.

The Cannular is a perfect choice for both advanced hobby brewers as well as nano breweries. A can is seamed in a few seconds The Cannular Compact Canning machine is also easy to use and to set up.

The Cannular operates on 24V DC, a power adapter is included.
Scope of delivery also includes a B-64 chuck and spacer for 50 cl Aluminum cans. The machine is ready to seal 50 cl Aluminium cans (art 5014795) out of the box.
With the optional spacer for 33cl cans (art. 5014798), you can also seal 33 cl Aluminium cans (art. 5014794).

ATTENTION: Braumarkt is not responsible for incompatibility with cans that were not purchased from Braumarkt.

The Cannular Compact Canning machine is very easy to operate. One start/stop button and two levers is all you need to seal a can.

The process is as follows:

• Place lid at the top of the can and place the can on the table spacer.
• Turn the platform lever clockwise to raise the can to the seamer.
• Turn on the machine with the start/stop button.
• Now use the second lever. First push it away from you, wait a few seconds and then pull the lever towards you. Now bring the lever back in the original position.
• Stop the machine with the start/stop button.
• Turn the platform lever counterclockwise to lower the can.

Your can is now sealed.
Note: we recommend filling the cans to the top so that the lid is placed on the foam, this to minimize oxidation.

Specifications:

• Power: 250 W - 24 V (12 A) - DC
• Rated Speed: 3,300 RPM
• Dimensions (L x W x H): 355 mm x 230 mm x 495 mm
• Can Height： 45-170mm
• Can Diameter： 35-75mm
• Included: power adaptor and Cannular Spacer for 50 cl.

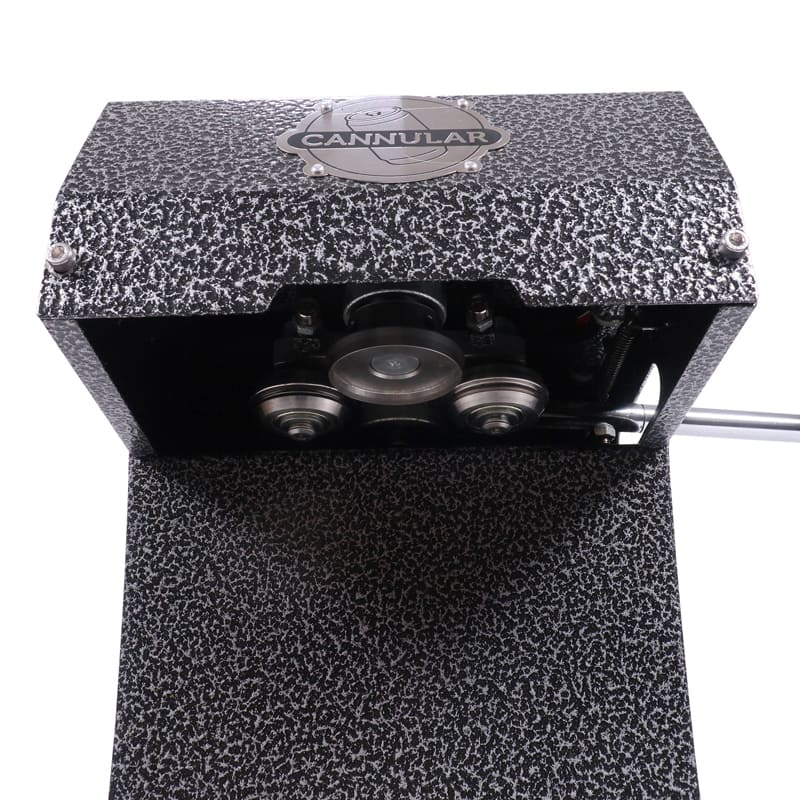

Please note: When you receive your Cannular the rollers have been set and tested at the factory. They should not need adjustment for 100,000 cans. The table, however, comes unadjusted and getting it set up correctly is very important to getting a proper seal. Cannular's test show that a .4 mm (.015") actual overlap is all that is needed to seal to 90 PSI. The proper table tension takes a little practice and expect to waste a few cans getting it dialled in. Use cans at your fill height with water for proper tension adjustment. You want the tension to be tight, but not so tight as to dent the can. Once you learn the proper tension, re-adjusting it is very quick and easy.
